Features

Specifications

Type: Flexographic Printer

Applicable Industries: Manufacturing Plant, Food & Beverage Factory

Condition: New

Plate Type: Letterpress

Usage: Paper Printer, FILM PRINTER

Automatic Grade: Semi-automatic

Color & Page: Two Colors

Voltage: 380V,50HZ,3PHASE , 415V,60HZ,3PHASE

Dimensions(L*W*H): 2300*1860*2145mm

Weight: 1800KG

Warranty: 1 Year

Key Selling Points: Easy To Operate

Printing Material: Plastic Film,PP,OPP,PE,NON WOVEN ,PAPER,AND SO ON

Max. Printing Width (mm): 600MM-1600MM

Printing Length: ONE METER

Anilox Roller: Metal Anilox Roller / CERAMIC ROLLER

Tension: MANUAL/AUTOMATIC

EPC: OPTIONAL

AIR SHAFT: OPTIONAL

Bearing: Oblique Gear

Printing Side: One-side Printing / Two Side Printing

Keyword: Flexografic Printing Machine

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: None

Showroom Location: None

After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support

Certification: CE

Basic Infomation

Certification: CE

Payment & Shipping Terms

Packaging Details: plastic film / bubble film /wooden box

Supply Ability: 30 Set/Sets per Month

Product Description

YTL-2600 YTL-2800 YTL-21000 YTL-21200 YTL-21400 YTL-21600

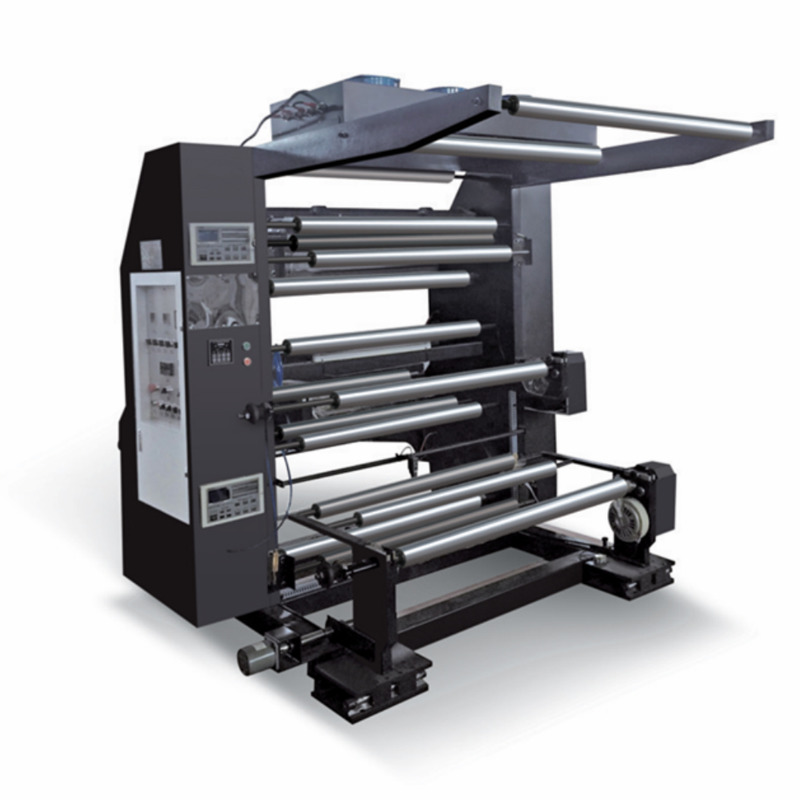

Two-color Flexo Printing Machine

Printing Machine Supplier

Product Description

Characteristics:

This flexible printing machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, cellophane and roll paper, etc. And it is a kind of ideal flexo printing equipment for producing paper packing bag for food, supermarket carry bag ,vest bag and clothes bag, etc.

1.Easy operation, flexible starting, accurate color register.

2.The meter counter can set printing quantity according to the requirements Stop the machine automatically at the set quantity or when the material is cut off.

3.Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4.The printing ink is spread by the knurled cylinder with even ink color.

5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6.360 continuous and adjustable register device.

7.The imported frequency control of motor speed adapts to different printing speeds.

8.There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Machine included :

1. Air shaft

2. Auto tension control

3. EPC

4, Pneumatic type printing cylinder lifting

OPTIONAL

1. Ceramic anilox roll

2. Hydraulic type printing cylinder lifting

3. Camera

4. Auto loading and unloading

5. Auto loading, and surface rewinding with 1.5kw motor

Main Parameter:

Machine model YTL-2600 YTL-2800 YTL-21000 YTL-21200

Max material width 600mm 800mm 1000mm 1200mm

Max. printnig width 560mm 760mm 960mm 1160mm

Suitable for material PAPER:15~300g/m2, NONWOVEN:15-120G, PVC:10~120um,OP:10~100um,BOP:10~100um.PE:15-150um

NY:10~120ym,PET:10~100um,CPP:10~100um

Colours (2 Colours)2+0,1+1

Printing length 220-1000mm

Principle of work Helical Gear+ Belt Drive

Machine speed (100m/min)

Printing speed 70-80m/min

Printing precision ±0.25mm

Plate thickness 17mm( if different thickness, please note us)

Packaging & Shipping
