Features

Specifications

Type: Flexographic Printer

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Printing Shops

Condition: New

Plate Type: Letterpress

Usage: Label Printer, Paper Printer

Automatic Grade: Semi-automatic

Color & Page: Multicolor

Voltage: 380v 3 Phase

Dimensions(L*W*H): 5800 *2800 *2900 Mm

Weight: 5500 KG

Warranty: 1 Year

Key Selling Points: High Productivity

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: Motor

After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support

Frame: Iron

Color: Optional

Unwinding Diameter: Max 800mm

Rewinding Diameter: Max 800mm

Auto Register: Optional

Speed: 100m/min

Heating: Electric Heating

Material: Plastic Film, Paper, Alu Foil

Width: 600-2000mm

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Pakistan, India, Malaysia, South Korea, Romania, Bangladesh, Nigeria

Showroom Location: Viet Nam, Pakistan, Morocco, Colombia, Kazakhstan

Marketing Type: Ordinary Product

Certification: CE,SGS

Basic Infomation

Certification: CE,SGS

Payment & Shipping Terms

Packaging Details: Film packing or wooden packing

Supply Ability: 30 Set/Sets per Month

Product Description

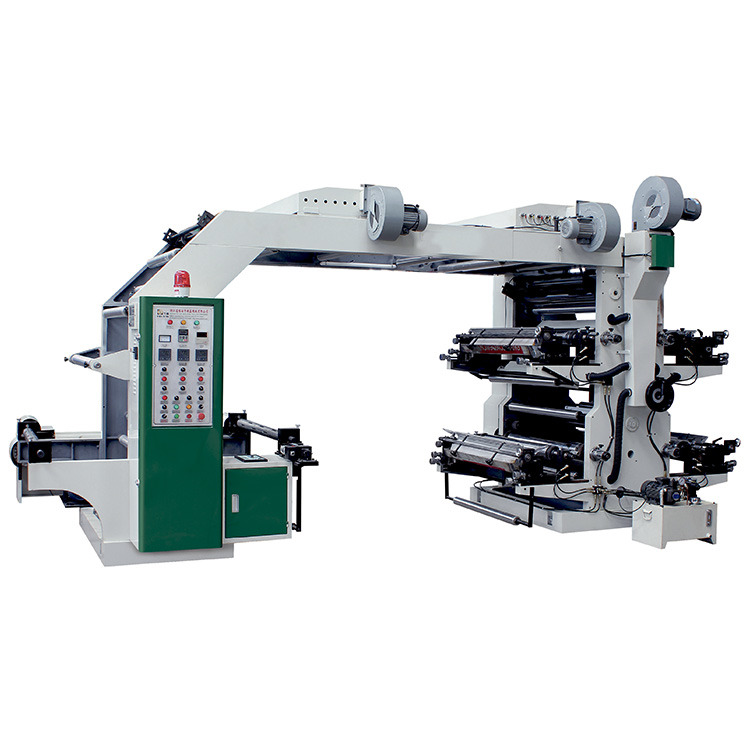

Automatic Paper Roll Flexo Printing Machine

Application:
This machine can print bopp, pet, pvc, cpp, nylon, non woven, woven sack, paper,
aluminum foil ect.

Feature:

1. Pneumatic printing cylinder lift and lower

2. Automatic tension control

3. Servo control EPC device.

4. Unwind and rewind adopt air shaft

5. The printing ink is spread by anilox roller

6. IR heating, independent constant temperature control.

7. Cold air box which can effectively prevent ink adhesion after printing.

8. 360° adjustable longitudinal register device, reverse printing device is installed.

9. Main motor inverter control

10. When printing plate fall, ink motor stop,when it lift, ink motor starts automatically.

11. Meter counter can set printing length according to the requirements,machine
automatically stops when reaching to the set value or the material is cut off.

Specification:

Model	YTZ6800
Max width of printing material	800mm
Max printing width	760mm
Printing length	200-1000mm
Printing colors	6
Max diameter of unwind and rewind	1000mm
Max speed	100m/min
Thickness of plate (Including Two-sided Glue Paper)	1.14mm or 2.38mm or customized
Total power	44KW
Heating power	34KW
Main motor	5.5KW
Weight	7200kg
Dimension	580030502900mm
