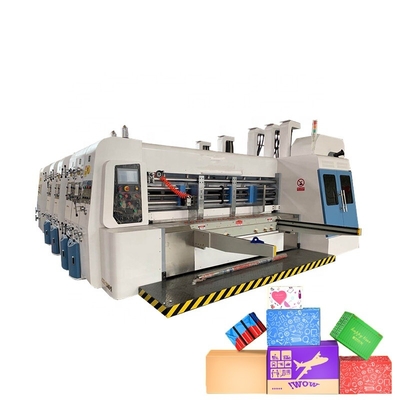

automatic flexo printing die cutting machine
Function and Characteristics:
1. Designed According the high request and the reliable function,the operation of the machine is humanization,can accomplish the setting,
revision, implement,replacing and memories function in a shot time,and display with a exact data.
2. All the drive rollers adopted high quality steel materials,hard chromium plating and the surface treated by lapping finish.
3.The drive gears adopt high quality alloy steel,after heat treatment and lapping finish.
4.Lubricate oil automatic balance device,keep the equal oil level equal in each unit.
5.The machine adopt PLC control,with automatic zero return"and"memory"function.
6.Use sun feeder for feed the cardboard.
7.Customer can chose use steel anilox roller or ceramic roller,the lines of the anilox roller so can be choose accord the customer use
Name of parameter |
Unit |
specification |
|||
Width of inside machine |
mm |
2400 |
2800 |
3200 |
|
Maximum production speed |
Pieces/min |
180 |
180 |
180 |
|
Maximum feeding size |
mm |
900*2000 |
1200*2400 |
1200*2800 |
|
Minimum feeding size |
mm |
280*600 |
350*700 |
350*700 |
|
Skip feeding size |
mm |
1100*2000 |
1500*2400 |
1500*2800 |
|
Maximum printing size |
mm |
840*2000 |
1200*2400 |
1200*2800 |
|
Printing precision |
mm |
±0.5 |
±0.5 |
±0.5 |
|
Printing plant thickness |
mm |
7.2 |
7.2 |
7.2 |
|
Printing paperboard thickness |
mm |
3-11 |
3-11 |
3-11 |
|
Minimum slot space |
mm |
Positive knife:190*160*160*160 |
Negative knife:260*60*260*60 |
||
Maximum slot depth |
mm |
210 |
300 |
300 |
|
Printing roller axle circle-oriented regulating |
degree |
360°revolving |
360°revolving |
360°revolving |
|
Printing roller axle oriented regulating |
mm |
±10 |
±10 |
±10 |
|
General power |
kw |
30 |
30 |
30 |
|
Machine dimension size |
mm |
6500*3430*2000 |
7500*4000*2400 |
7500*4500*2400 |
|
Machine total weight |
kg |
22000 |
2800 |
3200 |
